产品规格

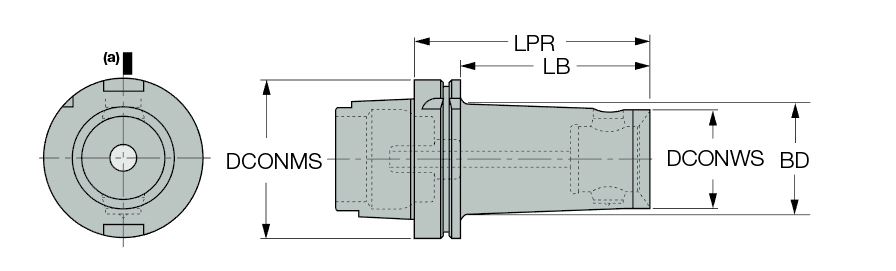

| Shank Size (SS) | 63 | 刀体材质 | Steel |
| Protruding Length (LPR) | 66 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Connection Code Machine Side (CCMS) | HSK |
| Connection Size (CSI) | MB50 | 单位 | M |
| Coolant Supply Property (CSP) | Coolant Thru |
产品特性

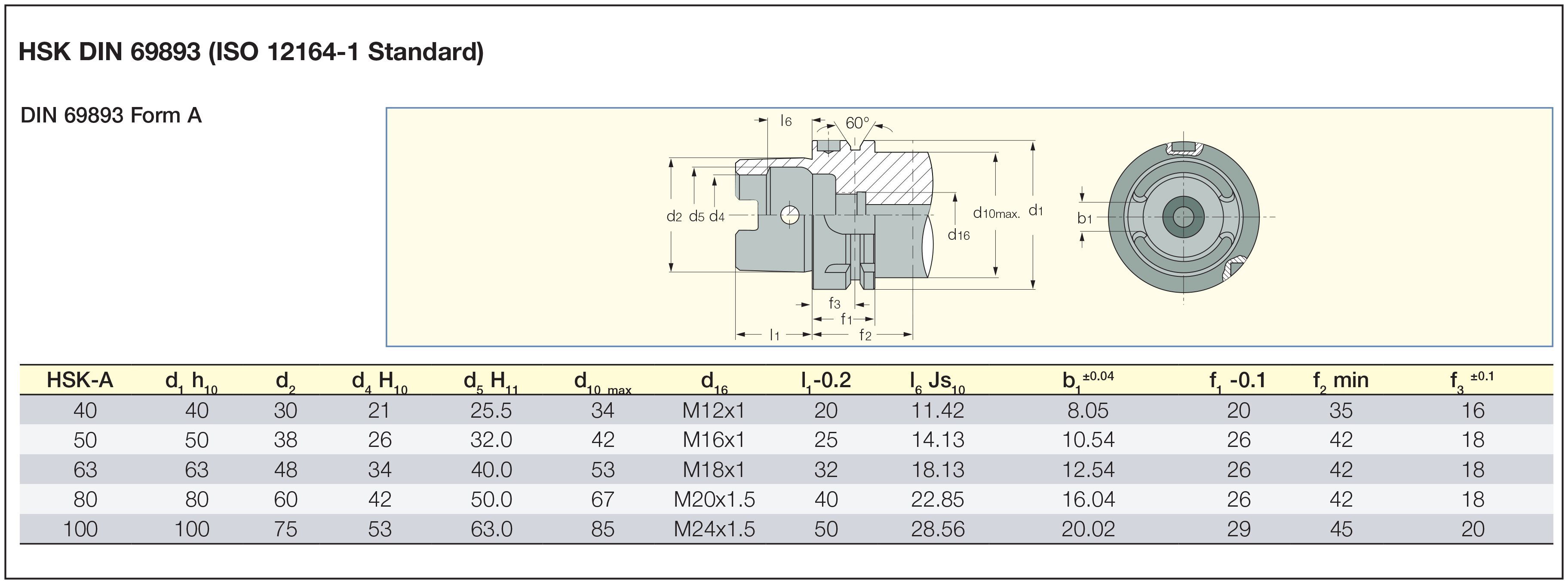

| 系列描述 | MB模块化连接系统，DIN 69893 HSK A 锥柄 | COO | Italy |
| 备注 | HSK主轴中心冷却必须使用冷却管 确认整个装配刀体的重量不超过机床的抓刀重量 |
Shipping Info
包装重量
1.0460
