产品规格

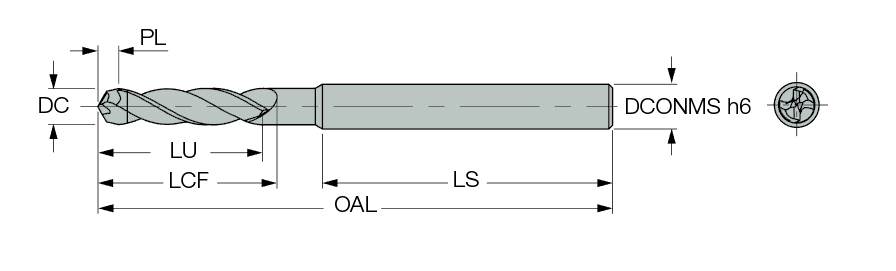

| Drill Bit Size / Cutting Diameter (DC) | 0.191″ | Usable Length (LU) | 1.13″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.191″ | Length Chip Flute (LCF) | 1.41″ |
| 十进制 | 0.191″ | Overall Length (OAL) | 2-3/4″ |
| 应用 | | 钻削 | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | 刀体材质 | Carbide |
| Shank Length (LS) | 1.34″ | Connection Code Machine Side (CCMS) | Cylindrical |
| 柄部形式 | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills | 单位 | I |
| 测量方式 | Inch |
产品特性

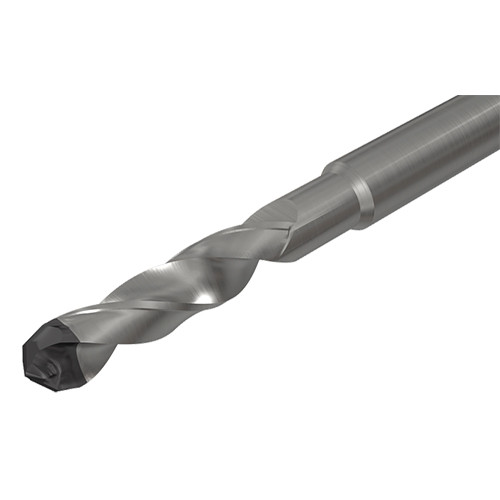

| 系列描述 | 整体PCD钻头，加工复合材料(CFRP)和叠层材料 | COO | Israel |
