产品规格
| Drill Bit Size / Cutting Diameter (DC) | 0.313″ | 等级 | IC608 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.313″ | 测量方式 | Inch |
| 十进制 | 0.313″ | Usable Length (LU) | 1.146″ |
| 涂层 | AlTiCrSiN | Length Chip Flute (LCF) | 1.61″ |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Overall Length (OAL) | 3.11″ |
| 应用 | | 钻削 | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | 刀体材质 | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1-1/2″ | Shank Diameter Tolerance (TCDMM) | h6 |
| 柄部形式 | Round | 单位 | I |
| 切削刃材质 | Carbide |
产品特性

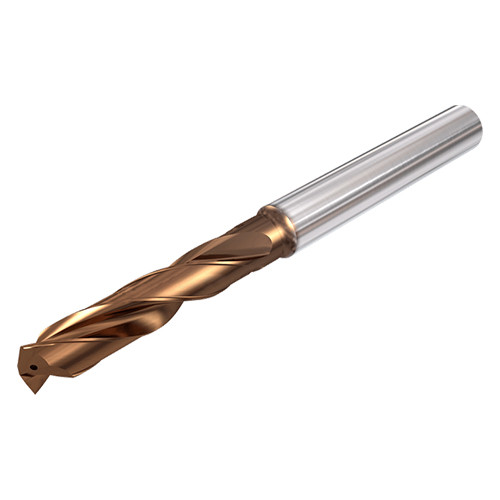

| 系列描述 | 整体硬质合金内冷钻，钻深比3XD（仅在北美地区供货） | COO | USA |
| 备注 | 基于DIN6537标准 |
