产品规格

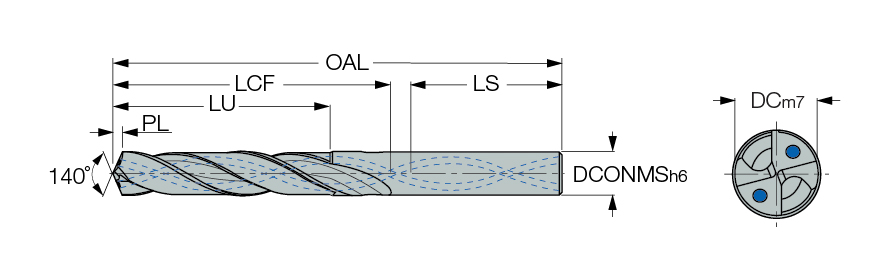

| Drill Bit Size / Cutting Diameter (DC) | 12.5 mm | 等级 | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.5 mm | 测量方式 | Metric |
| 长度组别 | 5xD | Usable Length (LU) | 60 mm |
| 涂层 | TiAlN | Length Chip Flute (LCF) | 77 mm |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Overall Length (OAL) | 124 mm |
| 应用 | | 钻削 | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | 刀体材质 | Carbide |
| Shank Length (LS) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| 柄部形式 | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| 切削刃材质 | Carbide | 单位 | M |
| Tool Type | solid carbide Drills |
产品特性
| 系列描述 | 整体硬质合金钻头，内冷，钻深比：5XD | COO | Korea |
Shipping Info
包装重量
0.2040
