产品规格

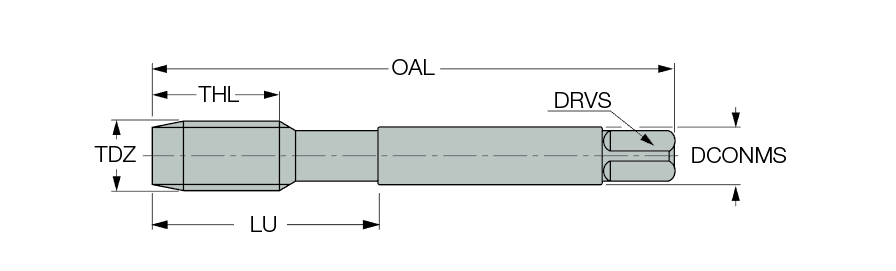

| Thread Diameter Size (TDZ) | M9 | 标准 | DIN 371 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Machine Through Hole Taps |
| 螺纹标准 | THFT | | 涂层 | Uncoated |
| Overall Length (OAL) | 90 mm | Drive Size (DRVS) | 7 mm |
| Thread Cutting Part Length (THL) | 20 mm | 测量方式 | Metric |
| Usable Length (LU) | 35 mm | 等级 | HE |
| Connection Diameter Machine Side (DCONMS) | 9 mm | 螺纹尺寸 | M9 × 1.25 |
| Flute Count (NOF) | 3 | 刀体材质 | HSS |
| 应用 | | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 用于浅通孔加工的丝锥 | 用于深通孔加工的丝锥 | | Thread Form Type (THFT) | M60 |
| 切削刃材质 | HSS | 单位 | M |
产品特性

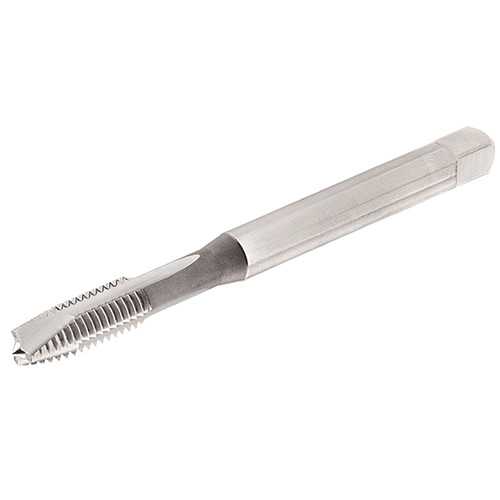

| 系列描述 | DIN 13 高速钢带顶尖机用丝锥 - 用于ISO公制粗牙螺纹，通用加工 | COO | Korea |
