产品规格

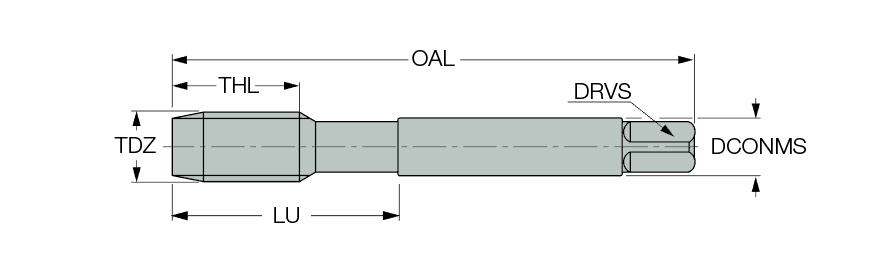

| Thread Diameter Size (TDZ) | M9 | 涂层 | Uncoated |
| Thread Pitch (TP) | 1.25 mm | 测量方式 | Metric |
| 螺纹标准 | THFT | | 等级 | HE |
| Overall Length (OAL) | 90 mm | Thread Form Type (THFT) | M60 |
| Thread Cutting Part Length (THL) | 13 mm | 应用 | | 丝锥，用于浅盲孔螺纹加工 | 丝锥，用于深盲孔螺纹加工 | 深孔，带浅螺纹 | 用于浅盲孔加工的丝锥 | 用于深盲孔加工的丝锥 | |
| Usable Length (LU) | 35 mm | 刀体材质 | HSS |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Drive Size (DRVS) | 7 mm |
| Flute Count (NOF) | 2 | 螺纹尺寸 | M9 × 1.25 |
| Flute Helix Angle (FHA) | 45 Degrees | 单位 | M |
| 切削刃材质 | HSS |
产品特性

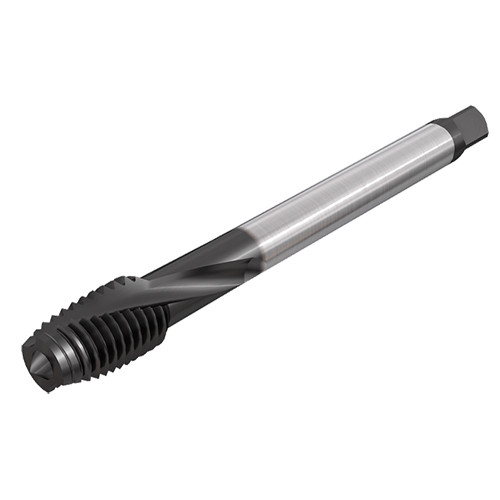

| 系列描述 | DIN 13 含钴高速钢机用丝锥，右手，40°螺旋槽 - 用于ISO公制粗牙螺纹，加工铝和铝合金 | COO | Korea |
| 备注 | 刀具材料牌号已从HE改为HEST。HEST和HE是完全相同的，因此HE牌号的产品可能仍然能见到。 |
Shipping Info
包装重量
0.0400
