产品规格
| Thread Diameter Size (TDZ) | M30 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 2 mm | 涂层 | Uncoated |
| 螺纹标准 | THFT | | 测量方式 | Metric |

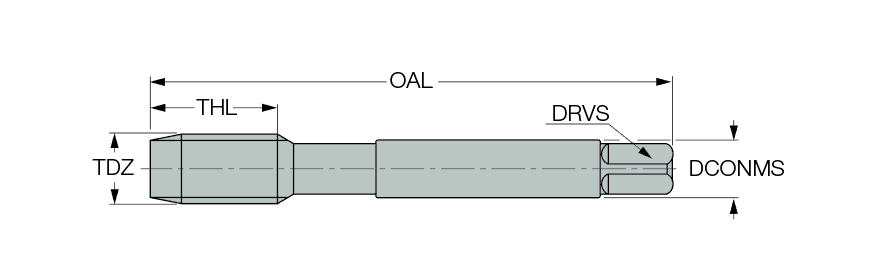

| Overall Length (OAL) | 150 mm | 等级 | HE |
| Thread Cutting Part Length (THL) | 22 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 22 mm | 应用 | | 丝锥，用于浅盲孔螺纹加工 | 丝锥，用于深盲孔螺纹加工 | 深孔，带浅螺纹 | 用于浅盲孔加工的丝锥 | 用于深盲孔加工的丝锥 | |
| Flute Count (NOF) | 4 | 刀体材质 | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 18 mm |
| 切削刃材质 | HSS | 螺纹尺寸 | M30 × 2 |
| 标准 | DIN 374 | 单位 | M |
产品特性
| 系列描述 | DIN 13 高速钢机用丝锥，螺旋槽 - 用于公制细牙螺纹，通用材料加工 | COO | Korea |
Shipping Info
包装重量
0.4520
