产品规格

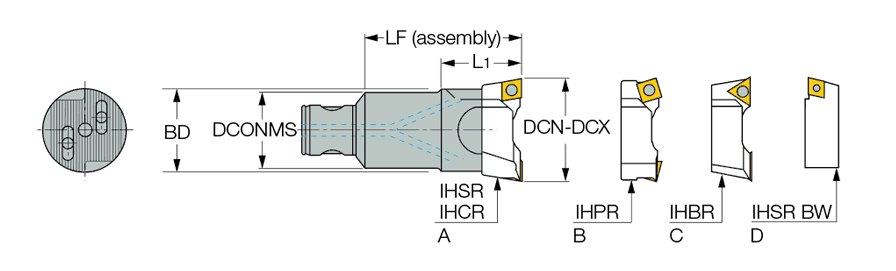

| Cutting Diameter Minimum (DCN) | 50 mm | Tool Type | MB Rough boring heads |
| Cutting Diameter Maximum (DCX) | 68 mm | 测量方式 | Metric |
| Functional Length (LF) | 75 mm | Rotational Speed Maximum (RPMX) | 8000 rpm |
| Body Diameter (BD) | 45 mm | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | 单位 | M |
| Insert Holders (IH) | IH...50-68 |
产品特性
| 系列描述 | 粗镗刀头，直径范围 18-200mm，用于MB模块化镗刀系统 | COO | Italy |
| 备注 | 确认整个装配刀体的重量不超过机床的抓刀重量 点击一种规格，再点击“更多”可查看配件图 |
Shipping Info
包装重量
0.7160
