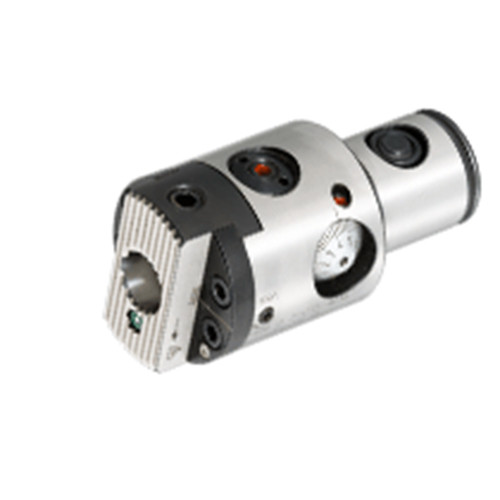

‎BHFI MB40-40X80

Fine boring heads with MB modular system connection and .00008″ direct diametric adjustment

项# ISC4550263

品牌名称: Iscar

制造商号: 4550263

产品规格

Cutting Diameter Minimum (DCN)

1.89″

Tool Type

MB Fine boring heads

Cutting Diameter Maximum (DCX)

2.48″

测量方式

Inch

Functional Length (LF)

2.6″

Rotational Speed Maximum (RPMX)

8000 rpm

Body Diameter (BD)

1.575″

刀体材质

Steel

Connection Diameter Machine Side (DCONMS)

1.575″

单位

Insert Holders (IH)

IH.. 40..

系列描述

Fine boring heads with MB modular system connection and .00008″ direct diametric adjustment

COO

Italy

备注

点击一种规格，再点击“更多”可查看配件图

包装重量

1.7416
