产品规格

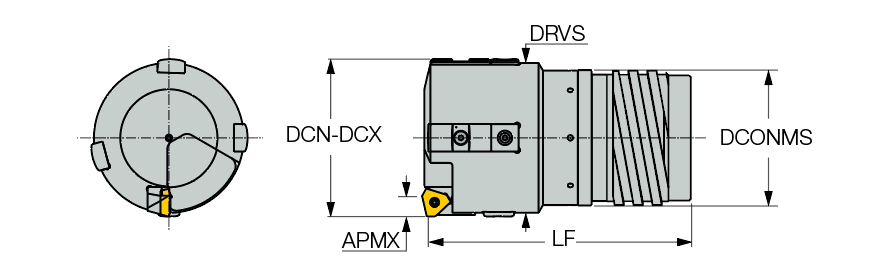

| Connection Diameter Machine Side (DCONMS) | 39 mm | 应用 | | 深孔钻 | |
| Flute Count (NOF) | 1 | Depth of Cut Maximum (APMX) | 6.4 mm |
| Cutting Diameter Maximum (DCX) | 47 mm | Drive Size (DRVS) | 43 mm |
| Cutting Diameter Minimum (DCN) | 43.01 mm | Functional Length (LF) | 95 mm |
| 刀体材质 | Steel | 单位 | M |
| 测量方式 | Metric |
产品特性

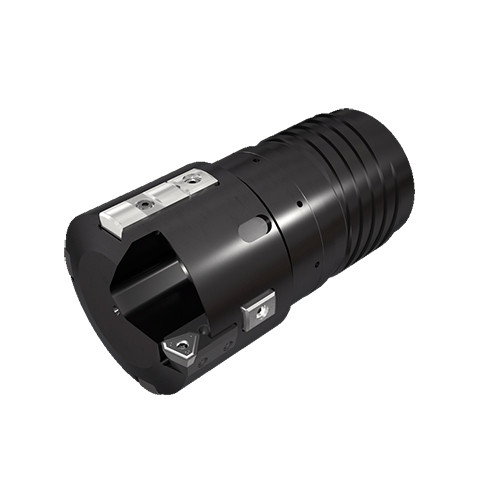

| 系列描述 | 4头外螺纹连接，机夹可调式双管扩孔钻（喷吸扩孔钻）（D40-184） | COO | Japan |

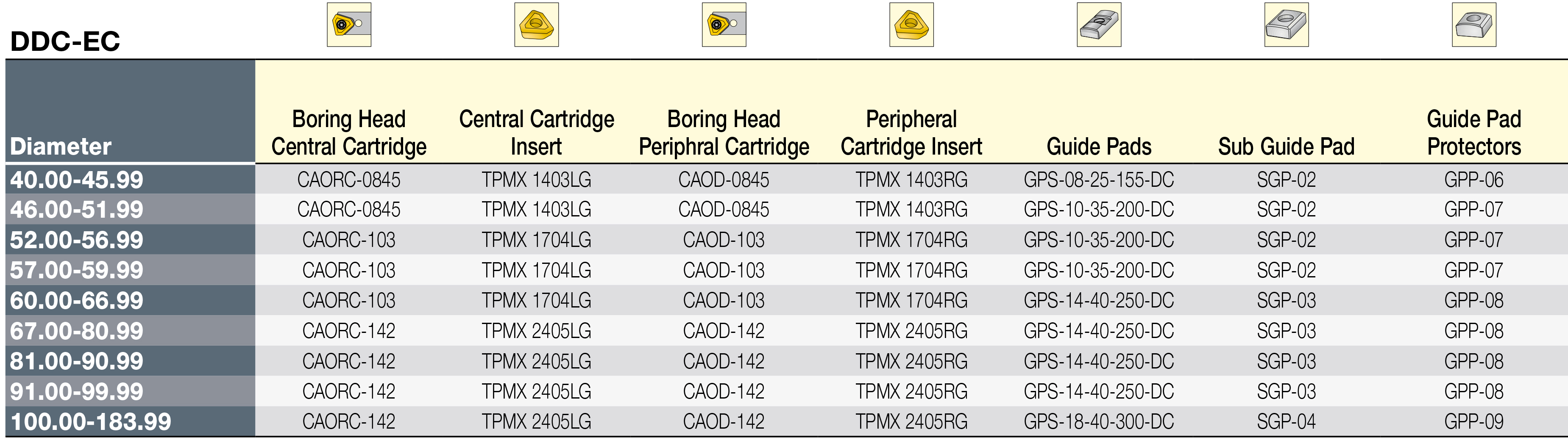

| 备注 | 有关配件和刀片的信息，请点击更多信息 订购示例：DDC-EC 130.35 |
