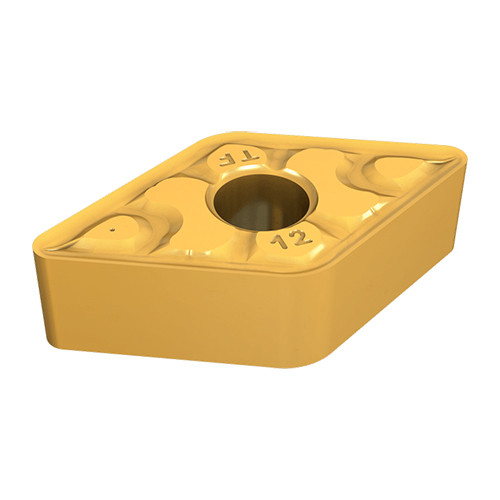

DNMG 150612-TF IC1017
Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 高温合金 | | 最小切削深度 | 1.5 mm |
| 应用 | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Depth of Cut Maximum (APMX) | 4 mm |

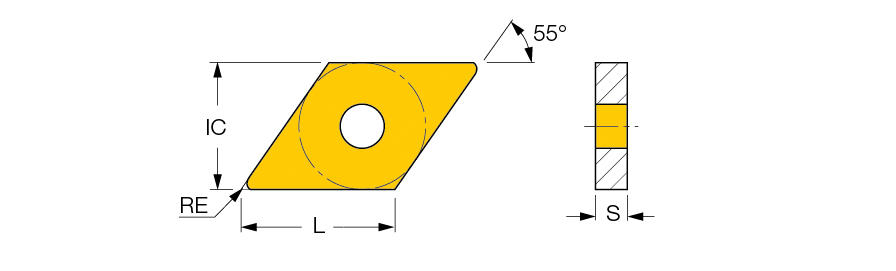

| Corner Radius (RE) | 1.2 mm | 最小车削进给(ft(min)) | 0.11 mm/rev |
| 刀片尺寸 | 443-TF | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | 断屑槽型 | TF |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| 涂层 | AlTiN | 刀体材质 | Carbide |
| 等级 | IC1017 | 单位 | M |
| Tool Type | Turn Negative Inserts |
产品特性
| 系列描述 | Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | 系列名称 | DNMG/DNGG-TF |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0184
名字
Turning Indexable Inserts
系列名称
DNMG/DNGG-TF
品牌
Iscar
