A12M SCLCL-06
Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter.
Price: Log in For Price
产品规格

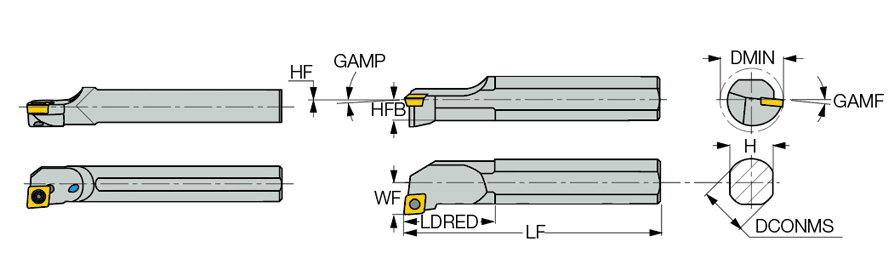

| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 150 mm | 应用 | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT 060204-14 | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 15.8 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Left Hand | 单位 | M |
产品特性
| 系列描述 | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | 系列名称 | A/E/S-SCLCR/L |
| 备注 | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1330
名字
Indexable Internal Turning Tools
系列名称
A/E/S-SCLCR/L
品牌
Iscar
