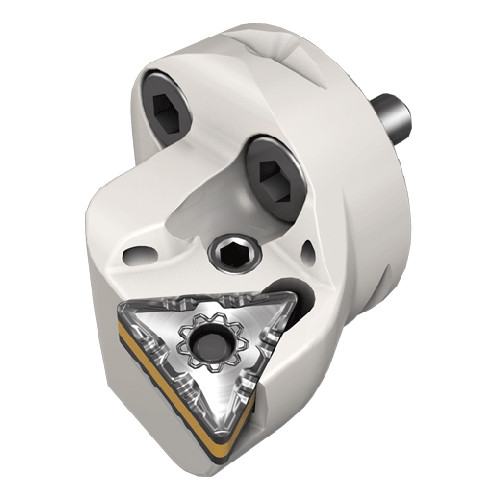

AVC-D25-PTLNL-16
Interchangeable Boring Heads Carrying 60° Triangular Inserts
Price: Log in For Price
产品规格

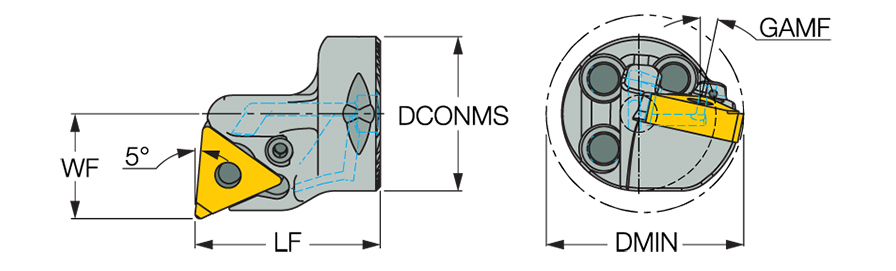

| Functional Length (LF) | 30 mm | 应用 | | Int. 60° Triangle 95° Approach | |
| Functional Width (WF) | 17 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Left Hand | 单位 | M |
产品特性
| 系列描述 | Interchangeable Boring Heads Carrying 60° Triangular Inserts | 系列名称 | AVC-PTLNR/L |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0780
名字
General Indexable Turning Tools
系列名称
AVC-PTLNR/L
品牌
Iscar
