DCN 040-032-06C-8D
圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深8XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price

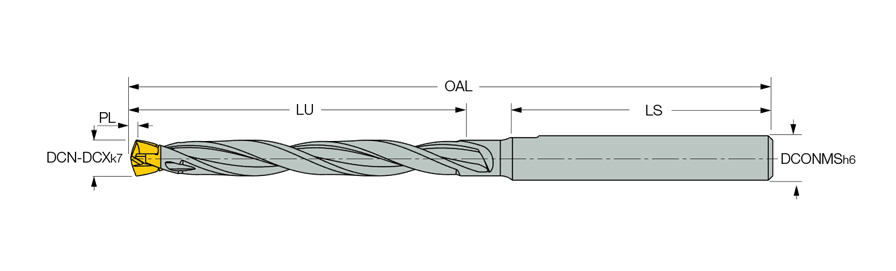

产品规格
| Cutting Diameter (DC) | 4 mm | Shank Length (LS) | 35 mm |
| Usable Length (LU) | 32.62 mm | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Round | 测量方式 | Metric |
| 应用 | | 钻削 | | Master Insert Identification (MIID) | ICP 040 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Point Length (PL) | 0.62 mm |
| Insert Seat Size Code (SSC) | 4.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Diameter Maximum (DCX) | 4.49 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 77.7 mm | 单位 | M |
产品特性
| 系列描述 | 圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深8XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.0190
