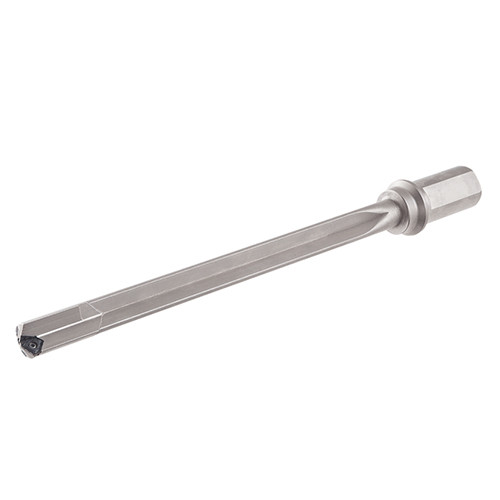

GD-DH 14.50-20D-M25-07
机夹式枪钻，安装TOGT三角形锯齿状刀片，有修光刃可获得优异的表面加工质量和高进给。可提供10, 15, 25倍径钻杆
Price: Log in For Price
产品规格
| Cutting Diameter (DC) | 14.5 mm | Overall Length (OAL) | 394.95 mm |
| Usable Length (LU) | 302 mm | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 枪钻 | | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | TOGT 07.. |
| Tool Type | Deep Hole / Gun Drill | 刀体材质 | Steel |
| Shank Length (LS) | 56 mm | 单位 | M |
| Functional Length (LF) | 337 mm |
产品特性
| 系列描述 | 机夹式枪钻，安装TOGT三角形锯齿状刀片，有修光刃可获得优异的表面加工质量和高进给。可提供10, 15, 25倍径钻杆 | COO | Japan |
| 备注 | 导向块和刀柄选择，请点击“更多” 注意：非标定制钻杆最长可达2400mm 刀片和导向块需单独订购（不包含在刀具中） 特别提醒：不要使用加工转速进入引导孔，需放慢至50-100rpm |
Shipping Info
包装重量
0.5290
Related Documentation
Possible risks: To prevent injuries, do NOT operate any deep hole drill, which uses a pre-drilled guide hole, at full speed before entering the guide hole. The deep hole drill may fracture due to vibration and cause injuries.
